TSF2N60MZ

N-Channel MOSFET

Truesemi

TSF2N60MZ Features

* 2.0A, 600V, RDS(on) = 5.00Ω @VGS = 10 V

* Low gate charge ( typical 9nC)

* High ruggedness

* Fast switching

* 100% avalanche tested

* ESD improved capability

* Improved dv/dt capability GDS TO-220 GD S TO-220F Absolute Maximum Ratings TC

TSF2N60MZ General Description

This Power MOSFET is produced using Truesemi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices a.

TSF2N60MZ Datasheet (345.91 KB)

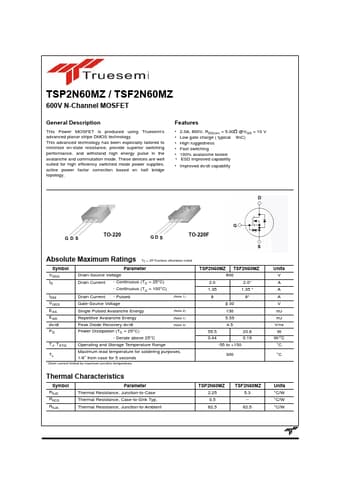

TSF2N60MZ Datasheet Preview — Preview of TSF2N60MZ PDF

Datasheet Details

Part number:

TSF2N60MZ

Manufacturer:

Truesemi

File Size:

345.91 KB

Description:

N-channel mosfet.
