VBT6045CBP-M3 - Trench MOS Barrier Schottky Rectifier

VBT6045CBP-M3 Description

www.vishay.com VBT6045CBP-M3 Vishay General Semiconductor Trench MOS Barrier Schottky Rectifier for PV Solar Cell Bypass Protection Ultra Low VF = 0.

VBT6045CBP-M3 Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C

VBT6045CBP-M3 Applications

* For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias. PRIMARY CHARACTERISTICS Package TO-263AB IF(AV) VRRM IFSM 2 x 30 A 45 V 320 A VF at IF = 30 A 0.47 V TOP max. (AC mode) TJ max. (DC forward current) Diode variation 150 °C 200

📥 Download Datasheet

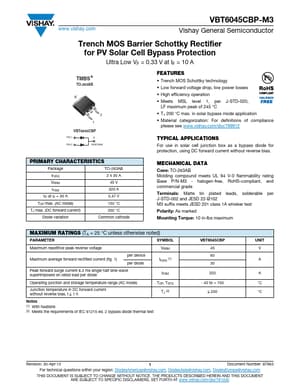

Preview of VBT6045CBP-M3 PDF
