WNMD2153, Dual N-Channel MOSFET

WNMD2153 Dual N-Channel, 20V, 0.89A, Small Signal MOSFET VDS (V) 20 Rds(on) (ȍ) 0.220@ VGS=4.5V 0.260@ VGS=2.5V 0.320@ VGS=1.8V .
The WNMD2153 is N-Channel enhancement MOS Field Effect Transistor.

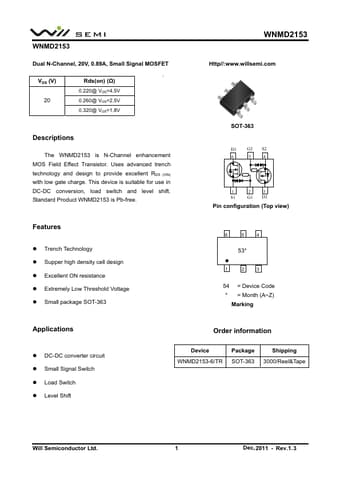

datasheet Preview Page 1 from Datasheet4u.com

WNMD2153-WillSemiconductor.pdf

WNMD2153 Datasheet Preview — Preview of WNMD2153 PDF

Datasheet Details

Part number:

WNMD2153

Manufacturer:

Will Semiconductor

File Size:

262.36 KB

Description:

Dual N-Channel MOSFET

Features

* z Trench Technology z Supper high density cell design z Excellent ON resistance z Extremely Low Threshold Voltage z Small package SOT-363 WNMD2153 Http//:www. willsemi. com SOT-363 D1 G2 S2 6 54 1 23 S1 G1 D2 Pin configuration (Top view) 6 54 53
* 1 23 54 = Device Code
* = Month (A~Z) Marking

Applications

* z DC-DC converter circuit z Small Signal Switch z Load Switch z Level Shift Order information Device Package Shipping WNMD2153-6/TR SOT-363 3000/Reel&Tape Will Semiconductor Ltd. 1 Dec,2011 - Rev.1.3 Absolute Maximum ratings Parameter Drain-Source
