WNMD2154A 20V 820mA Dual N-Channel Power MOSFET

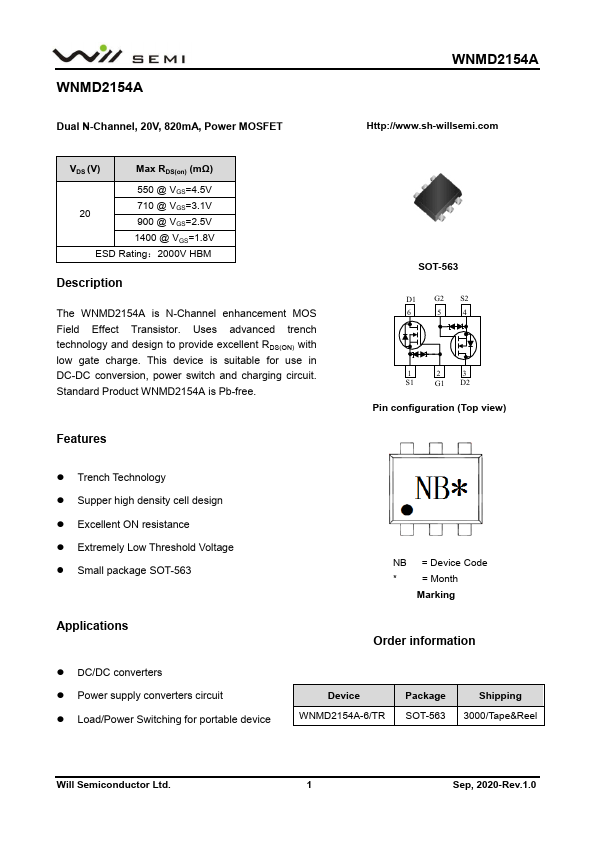

WNMD2154A Dual N-Channel, 20V, 820mA, Power MOSFET WNMD2154A Http://www.sh-willsemi.com VDS (V) Max RDS(on) (mΩ) 550 @ VGS=4.5V 710 @ VGS=3.1V 20 .
The WNMD2154A is N-Channel enhancement MOS Field Effect Transistor.

WNMD2154A-WillSemiconductor.pdf

WNMD2154A Datasheet Preview — Preview of WNMD2154A PDF

Datasheet Details

Part number:

WNMD2154A

Manufacturer:

Will Semiconductor

File Size:

736.03 KB

Description:

20V 820mA Dual N-Channel Power MOSFET

Features

* SOT-563 D1 G2 S2 6 5 4 1 2 3 S1 G1 D2 Pin configuration (Top view)
* Trench Technology
* Supper high density cell design
* Excellent ON resistance
* Extremely Low Threshold Voltage

Applications

* DC/DC converters
* Power supply converters circuit
* Load/Power Switching for portable device NB = Device Code
* = Month Marking Order information Device WNMD2154A-6/TR Package SOT-563 Shipping 3000/Tape&Reel Will Semiconductor Ltd. 1 Sep, 2020-Rev.1.0 Absolute Maximum rati
