CGHV96050F2, GaN HEMT

CGHV96050F2 50 W, 7.9 - 9.6 GHz, 50-ohm, Input/Output Matched GaN HEMT .
Wolfspeed’s CGHV96050F2 is a gallium nitride (GaN) High Electron Mobility Transistor (HEMT) on Silicon Carbide (SiC) substrates.

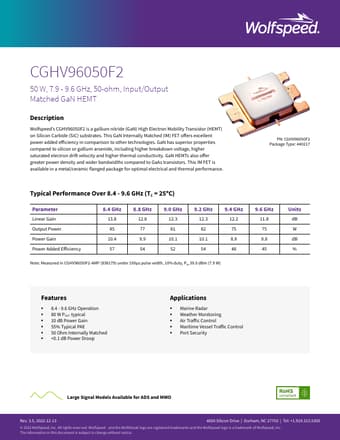

datasheet Preview Page 1 from Datasheet4u.com

CGHV96050F2-Wolfspeed.pdf

CGHV96050F2 Datasheet Preview — Preview of CGHV96050F2 PDF

Datasheet Details

Part number:

CGHV96050F2

Manufacturer:

Wolfspeed

File Size:

1.58 MB

Description:

GaN HEMT

Features

* 8.4 - 9.6 GHz Operation
* 80 W POUT typical
* 10 dB Power Gain
* 55% Typical PAE
* 50 Ohm Internally Matched

Applications

* Marine Radar
* Weather Monitoring
* Air Traffic Control
* Maritime Vessel Traffic Control
* Port Security Large Signal Models Available for ADS and MWO Rev. 3.5, 2022-12-13 4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300 © 2022 Wolfspeed, In
