PTVA120252MT - Thermally-Enhanced High Power RF LDMOS FET

PTVA120252MT Description

PTVA120252MT Thermally-Enhanced High Power RF LDMOS FET 25 W, 48 V, 500 * 1400 MHz .
The PTVA120252MT LDMOS FET is a 25-watt LDMOS FET designed for use in power amplifier applications in the 500 MHz to 1400 MHz frequency band.

PTVA120252MT Features

* include high gain and a thermally-enhanced, surface-mount package. Manufactured with Wolfspeed’s advanced LDMOS process, this device provides excellent thermal performance and superior reliability. Package Types: PG-SON-16 Peak/Average Ratio, Gain (dB) Efficiency (%) Single-carrier WCDMA Drive-up

📥 Download Datasheet

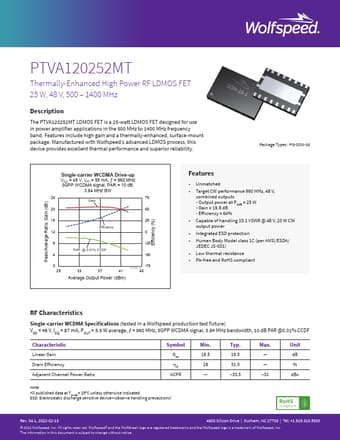

Preview of PTVA120252MT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PTVA120252MT
Manufacturer
Wolfspeed
File Size
547.35 KB
Datasheet
PTVA120252MT-Wolfspeed.pdf
Description
Thermally-Enhanced High Power RF LDMOS FET
