XP15TN1R5N N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP15TN1R5N Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Fast Switching Characteristic ▼ Low Gate Char.
XP15TN1R5 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

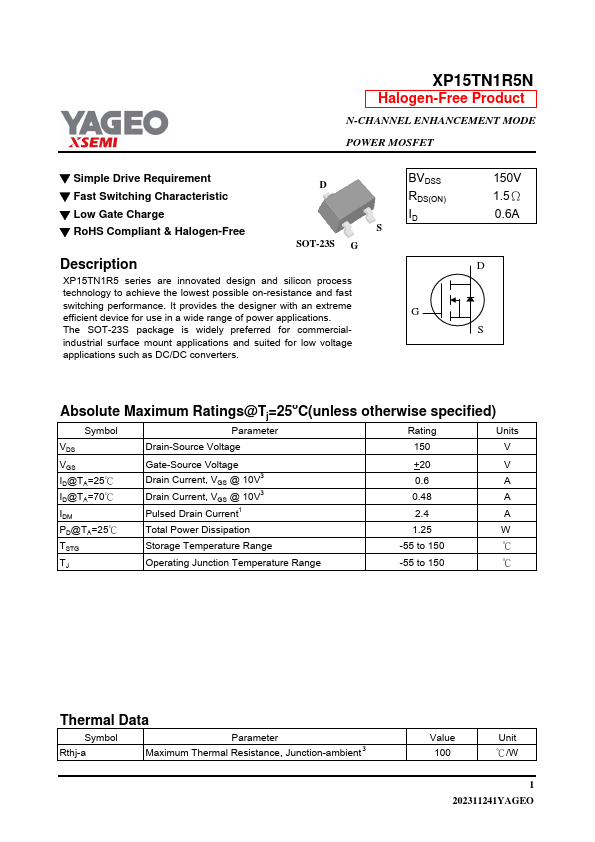

XP15TN1R5N Datasheet Preview — Preview of XP15TN1R5N PDF

Datasheet Specifications

Part number: XP15TN1R5N
Manufacturer: YAGEO
File Size: 192.11 KB
Datasheet: XP15TN1R5N-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-23S package is widely preferred for commercialindustrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID G 150V 1.5Ω 0.6A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS
