XP15TP1R0M P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP15TP1R0M Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Lower Gate Charge ▼ Fast Switching Characteristi.
XP15TP1R0 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

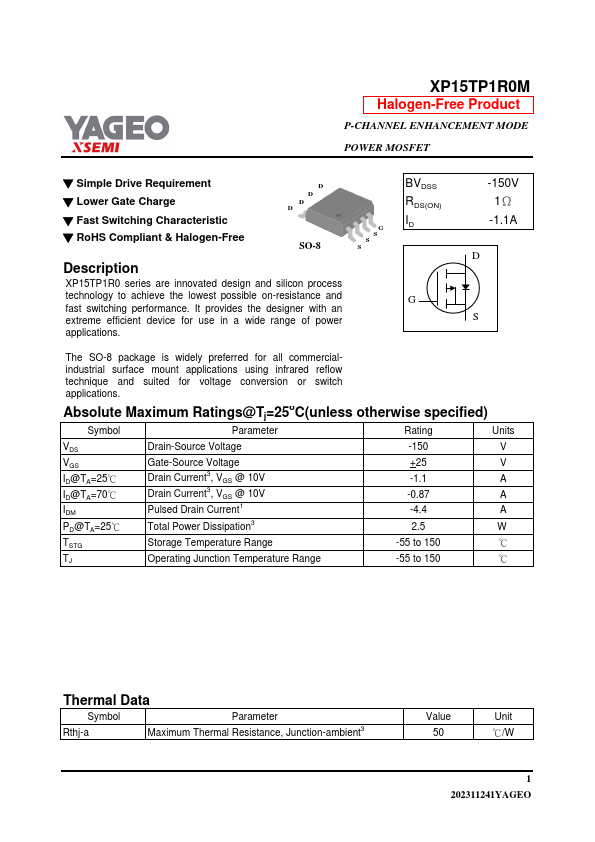

XP15TP1R0M Datasheet Preview — Preview of XP15TP1R0M PDF

Datasheet Specifications

Part number: XP15TP1R0M
Manufacturer: YAGEO
File Size: 209.32 KB
Datasheet: XP15TP1R0M-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* G S S S BVDSS RDS(ON) ID G -150V 1Ω -1.1A D S The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symb
