XP15TP1R0Y P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP15TP1R0Y Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Fast Switching Characteristic ▼ Lower Gate Charge ▼ Small Footprint & Low P.
XP15TP1R0 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

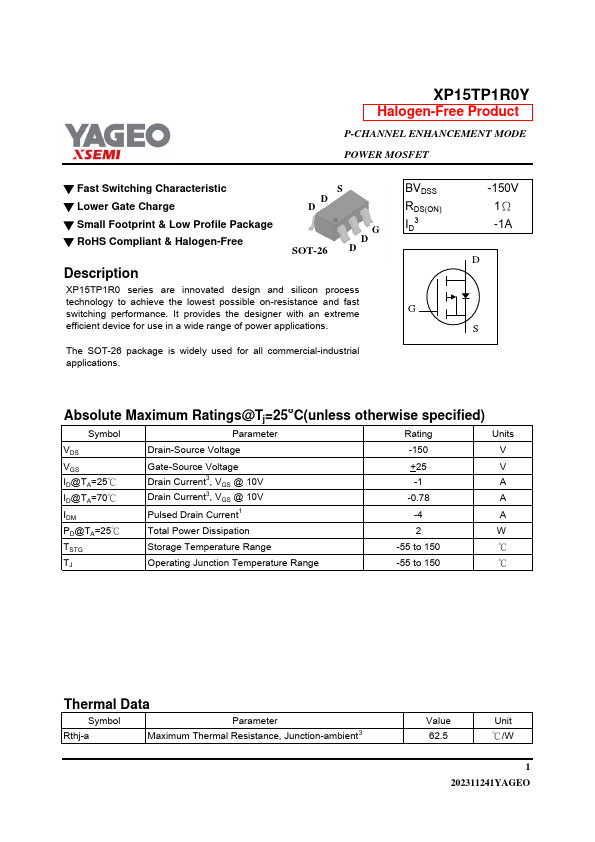

XP15TP1R0Y Datasheet Preview — Preview of XP15TP1R0Y PDF

Datasheet Specifications

Part number: XP15TP1R0Y
Manufacturer: YAGEO
File Size: 232.63 KB
Datasheet: XP15TP1R0Y-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-26 package is widely used for all commercial-industrial applications. BVDSS RDS(ON) ID3 G -150V 1Ω -1A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS Drain-Source Voltage -150 V VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ G
