PBSS4130QA-Q - 30V 1A NPN low VCEsat transistor

Name: PBSS4130QA-Q
SKU: PBSS4130QA-Q-1593275

nexperia

📥 Download Datasheet

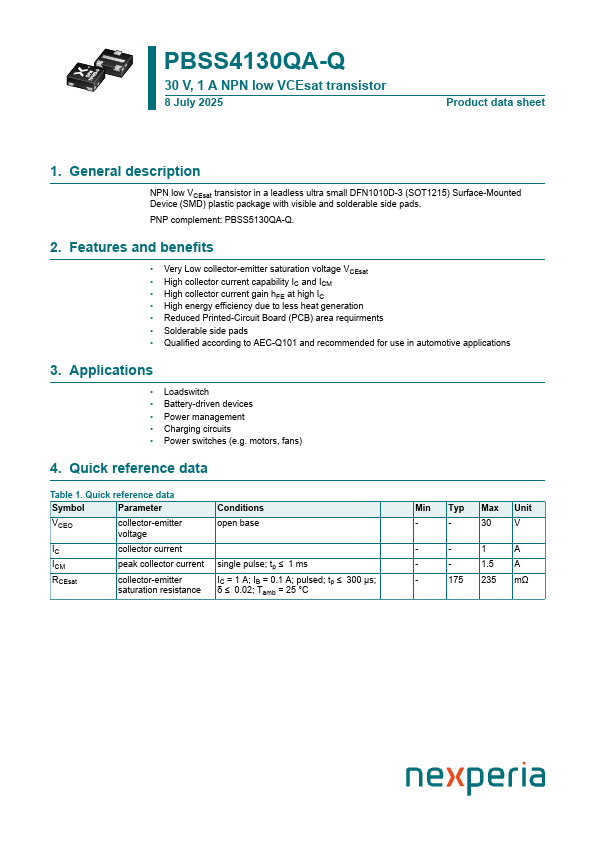

PBSS4130QA-Q Datasheet Preview — Preview of PBSS4130QA-Q PDF

Datasheet Details

Part number	PBSS4130QA-Q
Manufacturer	nexperia
File Size	284.69 KB
Description	30V 1A NPN low VCEsat transistor
Datasheet	PBSS4130QA-Q-nexperia.pdf

PBSS4130QA-Q Product details

Description

NPN low VCEsat transistor in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.

Features

Very Low collector-emitter saturation voltage VCEsat.
High collector current capability IC and ICM.
High collector current gain hFE at high IC.
High energy efficiency due to less heat generation.
Reduced Printed-Circuit Board (PCB) area requirments.
Solderable side pads.
Qualified according to AEC-Q101 and recommended for use in automotive.
