BLF8G09LS-270GW Power LDMOS transistor

270 W LDMOS power transistor with improved video bandwidth for base station applications at frequencies from 716 MHz to 960 MHz. Table 1. Typical performance Typical RF performance at Tcase = 25 C in a common source class-AB production test circuit, tested on straight lead device. Test signal f .

BLF8G09LS-270GW Features

* Excellent ruggedness

* Device can operate with the supply current delivered through the video leads

* High efficiency

* Low thermal resistance providing excellent thermal stability

* Designed for broadband operation (716 MHz to 960 MHz)

* Lower output capacitance for improv

BLF8G09LS-270W-Ampleon.pdf

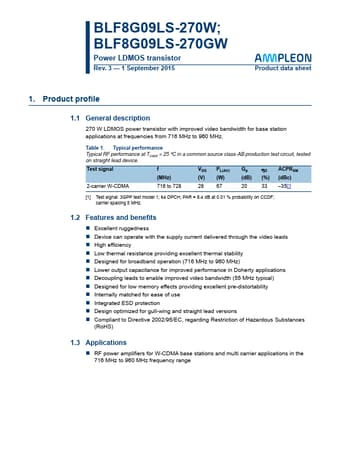

BLF8G09LS-270GW Datasheet Preview — This datasheet PDF includes multiple part numbers: BLF8G09LS-270GW, BLF8G09LS-270W. Please refer to the document for exact specifications by model.

BLF8G09LS-270GW Datasheet Preview Page 2

BLF8G09LS-270GW Datasheet Preview Page 3

Datasheet Details

Part number:

BLF8G09LS-270GW, BLF8G09LS-270W

Manufacturer:

Ampleon

File Size:

438.54 KB

Description:

Power ldmos transistor.

Note:

This datasheet PDF includes multiple part numbers: BLF8G09LS-270GW, BLF8G09LS-270W.
Please refer to the document for exact specifications by model.
