BLF8G09LS-270W - Power LDMOS transistor

Ampleon

📥 Download Datasheet

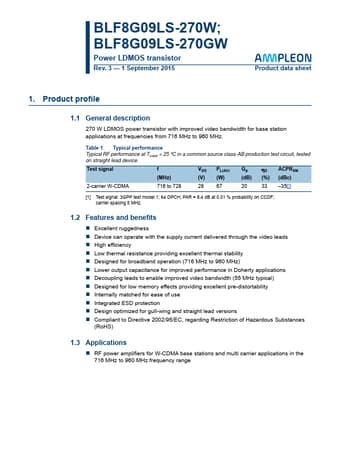

BLF8G09LS-270W Datasheet Preview — Preview of BLF8G09LS-270W PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BLF8G09LS-270W
Manufacturer	Ampleon
File Size	438.54 KB
Description	Power LDMOS transistor
Datasheet	BLF8G09LS-270W-Ampleon.pdf

BLF8G09LS-270W Product details

Description

270 W LDMOS power transistor with improved video bandwidth for base station applications at frequencies from 716 MHz to 960 MHz.

Features

Excellent ruggedness.
Device can operate with the supply current delivered through the video leads.
High efficiency.
Low thermal resistance providing excellent thermal stability.
Designed for broadband operation (716 MHz to 960 MHz).
Lower output capacitance for improved perf.
