BLF8G09LS-400PGW Power LDMOS transistor

400 W LDMOS power transistor for base station applications at frequencies from 716 MHz to 960 MHz. Table 1. Typical performance Typical RF performance at Tcase = 25 C in a common source class-AB production test circuit, tested on straight lead device. Test signal f IDq VDS PL(AV) Gp D ACPR5.

BLF8G09LS-400PGW Features

* Excellent ruggedness

* Device can operate with the supply current delivered through the video leads

* High efficiency

* Low thermal resistance providing excellent thermal stability

* Designed for broadband operation

* Lower output capacitance for improved performance in Doh

BLF8G09LS-400PW-Ampleon.pdf

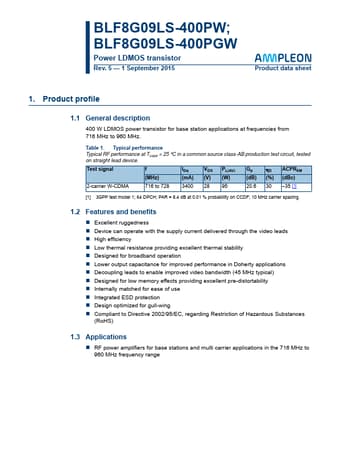

BLF8G09LS-400PGW Datasheet Preview — This datasheet PDF includes multiple part numbers: BLF8G09LS-400PGW, BLF8G09LS-400PW. Please refer to the document for exact specifications by model.

BLF8G09LS-400PGW Datasheet Preview Page 2

BLF8G09LS-400PGW Datasheet Preview Page 3

Datasheet Details

Part number:

BLF8G09LS-400PGW, BLF8G09LS-400PW

Manufacturer:

Ampleon

File Size:

437.87 KB

Description:

Power ldmos transistor.

Note:

This datasheet PDF includes multiple part numbers: BLF8G09LS-400PGW, BLF8G09LS-400PW.
Please refer to the document for exact specifications by model.
