CGHV27100 - GaN HEMT

Product Overview

Cree

Datasheet Details

Part number	CGHV27100
Manufacturer	Cree
File Size	703.21 KB
Description	GaN HEMT
Datasheet	CGHV27100 Datasheet

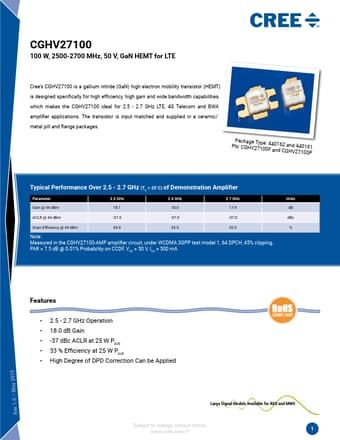

Additional preview pages of the CGHV27100 datasheet.

Product details

Description

RES, 10 OHM, +/- 1%, 1/16 W, 0603 CAP, 5.6 pF, +/- 0.25 pF, 0603, ATC CAP, 27 pF, +/-5%, 0603, ATC CAP, 10.0 pF, +/-5%, 0603, ATC CAP, 8.2 pF, +/-0.25 pF, 0603, ATC CAP, 470 pF, 5%, 100 V, 0603, X CAP, 33000 pF, 0805, 100 V, X7R CAP, 10 UF, 16 V, TANTALUM CAP, 27 pF, +/-5%, 250 V, 0805, ATC 600 F CAP, 1.0 UF, 100 V, 10%, X7R, 1210 CAP, 100 UF, +/-20%, 160 V, ELECTROLYTIC CAP, 33 UF, 20%, ELECTROLYTIC CONN, SMA HEADER RT>PLZ.1CEN LK 9POS PCB, RO4350, 0.020” THK, CGHV27100F 2-56 SOC HD SCREW 1/4 S

Features

2.5 - 2.7 GHz Operation.
18.0 dB Gain.
-37 dBc ACLR at 25 W PAVE.
33 % Efficiency at 25 W PAVE.
High Degree of DPD Correction Can be Applied Rev 1.0.
May 2015 Subject to change without notice. www. cree. com/rf 1 Absolute Maximum Ratings (not simultaneous) at 25˚C Case Temperature Parameter Symbol Drain-Source Voltage Gate-to-Source Voltage Storage Temperature Operating Junction Temperature Maximum Forward Gate Current Maximum Drai.
