CGHV27030S - GaN HEMT

Product Overview

CREE

Datasheet Details

Part number	CGHV27030S
Manufacturer	CREE
File Size	2.63 MB
Description	GaN HEMT
Datasheet	CGHV27030S Datasheet

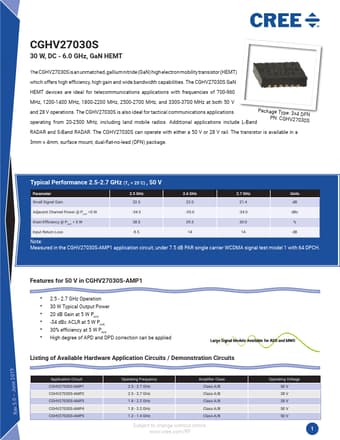

Additional preview pages of the CGHV27030S datasheet.

Product details

Description

RES, 22.6, OHM, +/-1%, 1/16W, 0603 CAP, 3.3 pF, ±0.1 pF, 0603, ATC CAP, 0.7 pF, ±0.05 pF, 0603, ATC CAP, 8.2 pF, ±0.25 pF, 0603, ATC CAP, 470 pF, 5%, 100 V, 0603 CAP, 33000 pF, 0805, 100 V, 0603, X7R CAP, 1.0 UF, 100 V, 10%, X7R, 1210 CAP, 10 UF 16 V TANTALUM Qty 2 1 3 3 2 2 1 1 CAP, 33 UF, 20%, G CASE CONN, SMA, PANEL MOUNT JACK, FLANGE, 4-HOLE, BLUNT POST HEADER RT>PLZ .1CEN LK 5 POS PCB, ROGERS 4350, ER 3.66 CGHV27030S, QFN 1 2 1 1 1 Copyright © 2013 - 2014 Cree, Inc.All rights reserved.

Features

for 50 V in CGHV27030S-TB1.
2.5 - 2.7 GHz Operation.
30 W Typical Output Power.
21 dB Gain at 5 W PAVE.
-36 dBc ACLR at 5 W PAVE.
32% efficiency at 5 W PAVE.
High degree of APD and DPD correction can be applied Listing of Available Hardware.
