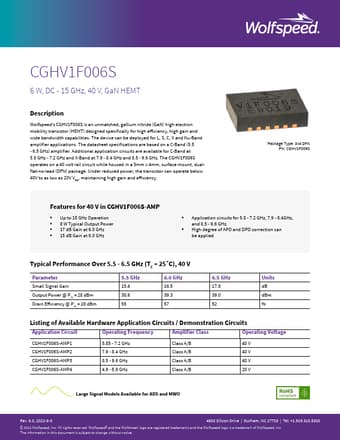

CGHV1F006S Datasheet, Hemt, Wolfspeed

✔ CGHV1F006S Features

for 40 V in CGHV1F006S-AMP
Up to 15 GHz Operation
8 W Typical Output Power
17 dB Gain at 6.0 GHz
15 dB Gain at 9.0 GHz
Application circuits for 5.8 - 7.2 GHz,

✔ CGHV1F006S Application

The datasheet specifications are based on a C-Band (5.5 - 6.5 GHz) amplifier. Additional application circui

PDF File Details

Wolfspeed manufacturer logo

Part number:

CGHV1F006S

Manufacturer:

Wolfspeed

File Size:

3.80MB

Download:

📄 Datasheet

Description:

Gan hemt. Wolfspeed’s CGHV1F006S is an unmatched, gallium nitride (GaN) high electron mobility transistor (HEMT) designed specifically for high

📥 Download PDF (3.80MB)
