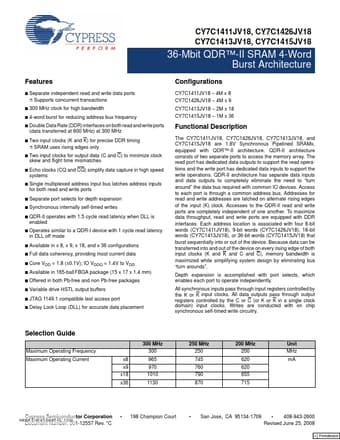

CY7C1411JV18, CY7C1413JV18 - (CY7C14xxJV18) 36-Mbit QDR-II SRAM 4-Word Burst Architecture

Cypress Semiconductor

Datasheet Details

Part number	CY7C1411JV18, CY7C1413JV18
Manufacturer	Cypress Semiconductor
File Size	723.39 KB
Description	(CY7C14xxJV18) 36-Mbit QDR-II SRAM 4-Word Burst Architecture
Datasheet	CY7C1413JV18_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY7C1411JV18, CY7C1413JV18. Please refer to the document for exact specifications by model.

The CY7C1411JV18, CY7C1426JV18, CY7C1413JV18, and CY7C1415JV18 are 1.8V Synchronous Pipelined SRAMs, equipped with QDR™-II architecture.

Configurations CY7C1411JV18.
4M x 8 CY7C1426JV18.
4M x 9 CY7C1413JV18.
2M x 18 CY7C1415JV18.
1M x 36 Separate independent read and write data ports.
Supports concurrent transactions 300 MHz clock for high bandwidth 4-word burst for reducing address bus frequency Double Data Rate (DDR) interfaces on both read and write ports (data transferred at 600 MHz) at 300 MHz Two input clocks (K and K) for precise DDR timing.
SRAM uses rising edges only.
