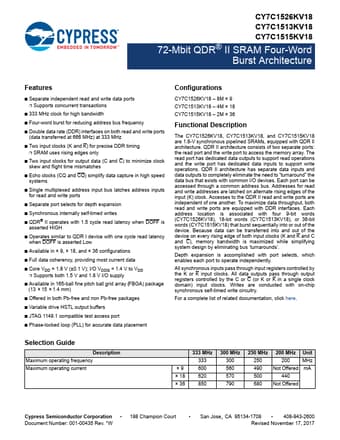

CY7C1513KV18, CY7C1511KV18 - (CY7C15xxKV18) 72-Mbit QDR II SRAM 4-Word Burst Architecture

Cypress Semiconductor

Datasheet Details

Part number	CY7C1513KV18, CY7C1511KV18
Manufacturer	Cypress Semiconductor
File Size	843.99 KB
Description	(CY7C15xxKV18) 72-Mbit QDR II SRAM 4-Word Burst Architecture
Datasheet	CY7C1511KV18_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY7C1513KV18, CY7C1511KV18. Please refer to the document for exact specifications by model.

The CY7C1526KV18, CY7C1513KV18, and CY7C1515KV18 are 1.8-V synchronous pipelined SRAMs, equipped with QDR II architecture.

Separate independent read and write data ports.
Supports concurrent transactions.
333 MHz clock for high bandwidth.
Four-word burst for reducing address bus frequency.
Double data rate (DDR) interfaces on both read and write ports (data transferred at 666 MHz) at 333 MHz.
Two input clocks (K and K) for precise DDR timing.
SRAM uses rising edges only.
Two input clocks for output data (C and C) to minimize clock skew and flight time mismatches.
Echo cl.
