CY7C1564XV18, CY7C1562XV18, 72-Mbit QDR II+ Xtreme SRAM Two-Word Burst Architecture

CY7C1562XV18/CY7C1564XV18 72-Mbit QDR® II+ Xtreme SRAM Two-Word Burst Architecture (2.5 Cycle Read Latency) 72-Mbit QDR® II+ Xtreme SRAM Two-Word Bur.

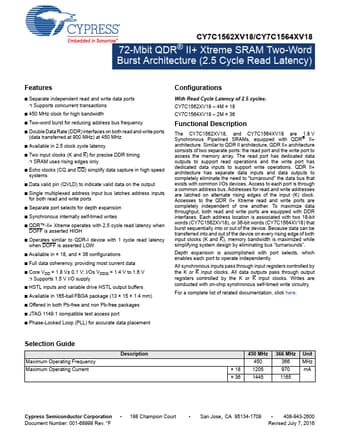

datasheet Preview Page 1 from Datasheet4u.com

CY7C1562XV18-CypressSemiconductor.pdf

CY7C1564XV18 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY7C1564XV18, CY7C1562XV18. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CY7C1564XV18, CY7C1562XV18

Manufacturer:

Cypress Semiconductor

File Size:

1.20 MB

Description:

72-Mbit QDR II+ Xtreme SRAM Two-Word Burst Architecture

Note:

This datasheet PDF includes multiple part numbers: CY7C1564XV18, CY7C1562XV18.
Please refer to the document for exact specifications by model.

Features

* Separate independent read and write data ports
* Supports concurrent transactions
* 450 MHz clock for high bandwidth
* Two-word burst for reducing address bus frequency
* Double Data Rate (DDR) interfaces on both read and write ports (data transferred at 900 MHz) at 450 MHz
