* Separate Independent Read and Write Data Ports
* Supports concurrent transactions
* 633 MHz Clock for High Bandwidth
* Four-word Burst for Reducing Address Bus Frequency
* Double Data Rate (DDR) Interfaces on both Read and Write Ports (data transferred at 1266 MHz) at 633 MHz

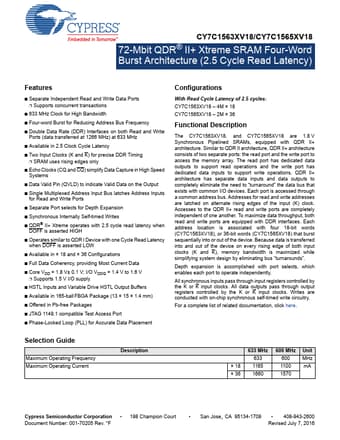

CY7C1565XV18 Datasheet (1.63 MB)
CY7C1565XV18
Cypress Semiconductor
1.63 MB
72-mbit qdr ii+ xtreme sram four-word burst architecture.
CY7C1563XV18/CY7C1565XV18 72-Mbit QDR® II+ Xtreme SRAM Four-Word Burst Architecture (2.5 Cycle Read Latency) 72-Mbit QDR® II+ Xtreme SRAM Four-Word B.
