F59L4G81KA - 4-Gbit 3.3V NAND Flash Memory

Product Overview

ESMT

Datasheet Details

Part number	F59L4G81KA
Manufacturer	ESMT
File Size	1.33 MB
Description	4-Gbit 3.3V NAND Flash Memory
Datasheet	F59L4G81KA Datasheet

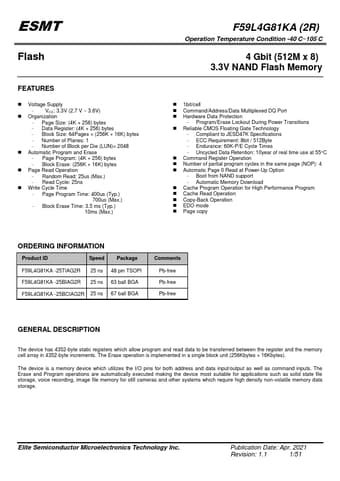

Additional preview pages of the F59L4G81KA datasheet.

Product details

Description

The device has 4352-byte static registers which allow program and read data to be transferred between the register and the memory cell array in 4352-byte increments.

Features

Voltage Supply VCC: 3.3V (2.7 V ~ 3.6V).
Organization Page Size: (4K + 256) bytes Data Register: (4K + 256) bytes Block Size: 64Pages = (256K + 16K) bytes Number of Planes: 1 Number of Block per Die (LUN)= 2048.
Automatic Program and Erase Page Program: (4K + 256) bytes Block Erase: (256K + 16K) bytes.
Page Read Operation Random Read: 25us (Max. ) Read Cycle: 25ns.
Write Cycle Time Page Program Time: 400us (Typ. ) 700us (Max. ) Block Erase Time: 3.5.
