F59L1G81LB-25BCG2M - 1 Gbit (128M x 8) 3.3V NAND Flash Memory

Product Overview

ESMT

Part number	F59L1G81LB-25BCG2M
Manufacturer	ESMT
File Size	2.25 MB
Description	1 Gbit (128M x 8) 3.3V NAND Flash Memory
Datasheet	F59L1G81LB-25BCG2M Datasheet
Note	This datasheet PDF includes multiple part numbers: F59L1G81LB-25BCG2M, F59L1G81LB-25TG2M. Please refer to the document for exact specifications by model.

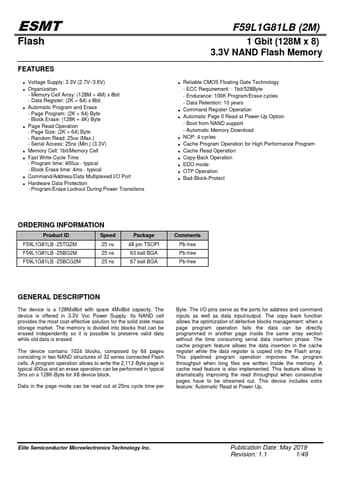

Additional preview pages of the F59L1G81LB-25BCG2M datasheet.

The device is a 128Mx8bit with spare 4Mx8bit capacity.

Voltage Supply: 3.3V (2.7V~3.6V).
Organization - Memory Cell Array: (128M + 4M) x 8bit - Data Register: (2K + 64) x 8bit.
Automatic Program and Erase - Page Program: (2K + 64) Byte - Block Erase: (128K + 4K) Byte.
Page Read Operation - Page Size: (2K + 64) Byte - Random Read: 25us (Max. ) - Serial Access: 25ns (Min. ) (3.3V).
Memory Cell: 1bit/Memory Cell.
Fast Write Cycle Time - Program time: 400us - typical - Block Erase time: 4ms - typical.
Command/Address/Da.
