F59L1G81LB-25BG2M, F59L1G81LB-25TG2M Datasheet - ESMT

F59L1G81LB-25BG2M 1 Gbit (128M x 8) 3.3V NAND Flash Memory

The device is a 128Mx8bit with spare 4Mx8bit capacity. The device is offered in 3.3V Vcc Power Supply. Its NAND cell provides the most cost-effective solution for the solid state mass storage market. The memory is divided into blocks that can be erased independently so it is possible to preserve val.

F59L1G81LB-25BG2M Features

* Voltage Supply: 3.3V (2.7V~3.6V)

* Organization - Memory Cell Array: (128M + 4M) x 8bit - Data Register: (2K + 64) x 8bit

* Automatic Program and Erase - Page Program: (2K + 64) Byte - Block Erase: (128K + 4K) Byte

* Page Read Operation - Page Size: (2K + 64) Byte - Random Read: 25

F59L1G81LB-25TG2M-ESMT.pdf

This datasheet PDF includes multiple part numbers: F59L1G81LB-25BG2M, F59L1G81LB-25TG2M. Please refer to the document for exact specifications by model.

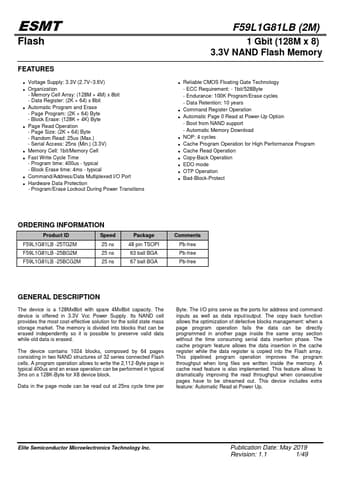

F59L1G81LB-25BG2M Datasheet Preview Page 2 F59L1G81LB-25BG2M Datasheet Preview Page 3

Datasheet Details

Part number:

F59L1G81LB-25BG2M, F59L1G81LB-25TG2M

Manufacturer:

ESMT

File Size:

2.25 MB

Description:

1 gbit (128m x 8) 3.3v nand flash memory.

Note:

This datasheet PDF includes multiple part numbers: F59L1G81LB-25BG2M, F59L1G81LB-25TG2M.
Please refer to the document for exact specifications by model.
