F59L4G81XB

3.3V NAND Flash Memory

F59L4G81XB Features

* Operating voltage range ­ VCC: 2.7

* 3.6V

* Open NAND Flash Interface (ONFI) 1.0-compliant1

* Single-level cell (SLC) technology

* Organization ­ Page size: 4352 bytes (4096 + 256 bytes) ­ Block size: 64 pages ­ Number of planes: 1

* Asynchronous I/O performance ­ tRC/tWC

F59L4G81XB General Description

NAND Flash devices include an asynchronous data interface for high-performance I/O operations. These devices use a highly multiplexed 8-bit bus (I/Ox) to transfer commands, address, and data. There are five control signals used to implement the asynchronous data interface: CE#, CLE, ALE, WE#, and RE.

F59L4G81XB Datasheet (2.42 MB)

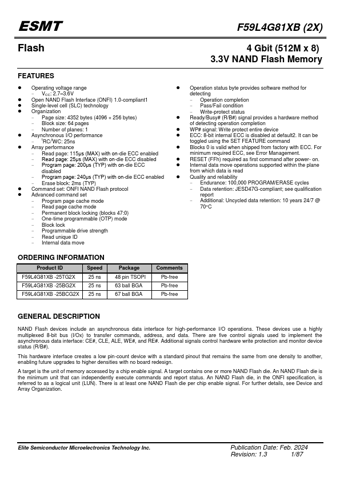

Preview of F59L4G81XB PDF

Datasheet Details

Part number:

F59L4G81XB

Manufacturer:

ESMT

File Size:

2.42 MB

Description:

3.3v nand flash memory.
