IXSH40N60B Datasheet, Igbt, ETC

IXSH40N60B Features

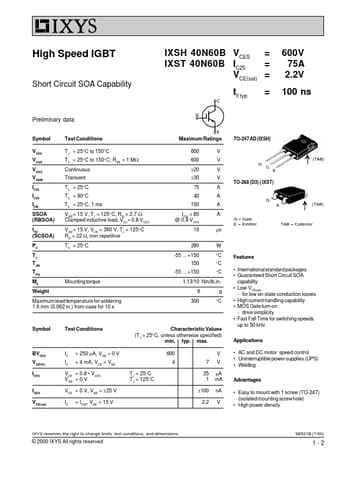

• Igbt G = Gate E = Emitter TAB = Collector G E (TAB) (TAB) G C E TO-247 AD (IXSH) TO-268 (D3) ( IXST) 1.13/10 Nm/lb.in. 6 300 g °C Symbol Test Conditions Characteristic Values (TJ = 25°C

PDF File Details

Part number:

IXSH40N60B

Manufacturer:

ETC

File Size:

55.53kb

Download:

📄 Datasheet

Description:

High speed igbt.

IXSH40N60B Application

• Applications
• AC and DC motor speed control
• Uninterruptible power supplies (UPS)
• Welding Advantages
• Easy to m
