IXSH45N120B Datasheet, Igbt, IXYS

IXSH45N120B Features

  • Igbt
  • Epitaxial Silicon drift region - fast switching - small tail current
  • MOS gate turn-on for drive simplicity Applications
  • AC motor speed control
  • DC

PDF File Details

Part number:

IXSH45N120B

Manufacturer:

IXYS

File Size:

53.55kb

Download:

📄 Datasheet

Description:

High voltage igbt.

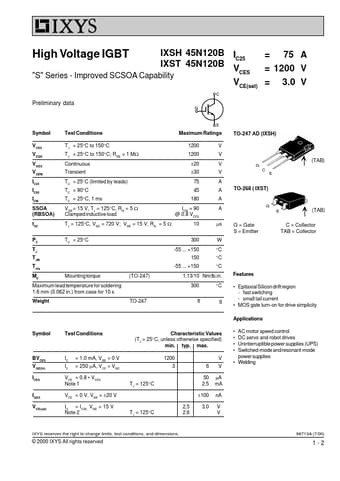

Datasheet Preview: IXSH45N120B 📥 Download PDF (53.55kb)
Page 2 of IXSH45N120B

IXSH45N120B Application

  • Applications
  • AC motor speed control
  • DC servo and robot drives
  • Uninterruptible power supplies (UPS)
  • Switched-
