IXSH40N60A, IXSM40N60, Low VCE(sat) IGBT

VCES Low VCE(sat) IGBT High Speed IGBT IXSH/IXSM 40 N60 IXSH/IXSM 40 N60A 600 V 600 V I C25 75 A 75 A VCE(sat) 2.5 V 3.0 V Short Circuit SOA Capabi.

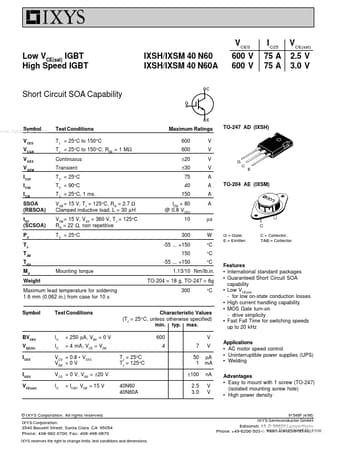

datasheet Preview Page 1 from Datasheet4u.com

IXSM40N60_IXYSCorporation.pdf

IXSH40N60A Datasheet Preview — This datasheet PDF includes multiple part numbers: IXSH40N60A, IXSM40N60. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXSH40N60A, IXSM40N60

Manufacturer:

IXYS Corporation

File Size:

105.97 KB

Description:

Low VCE(sat) IGBT

Note:

This datasheet PDF includes multiple part numbers: IXSH40N60A, IXSM40N60.
Please refer to the document for exact specifications by model.

Features

* International standard packages Guaranteed Short Circuit SOA capability Low VCE(sat) - for low on-state conduction losses High current handling capability MOS Gate turn-on - drive simplicity Fast Fall Time for switching speeds up to 20 kHz q q q q q q BVCES VGE(th) I CES I GES VCE(sat) IC IC = 25

Applications

* AC motor speed control Uninterruptible power supplies (UPS) Welding q q q q q Advantages Easy to mount with 1 screw (TO-247) (isolated mounting screw hole) High power density © IXYS Corporation. All rights reserved. IXYS Corporation 3540 Bassett Street, Santa Clara CA 95054 Phone: 408-982-0700,
