MRF6S21100HSR3, MRF6S21100HR3 RF Power Field Effect Transistors

Freescale Semiconductor

MRF6S21100HSR3 Description

www.DataSheet4U.com Freescale Semiconductor Technical Data Document Number: MRF6S21100H Rev.7, 1/2007 RF Power Field Effect Transistors N - Chann.
Part Number 2743019447 T491C105M050AT EEV - HB1H100P ATC100B102JT500XT CDR33BX104AKWY ATC100B5R1JT500XT ATC100B150JT500XT ATC100B6R8JT500XT T491X226K0.

MRF6S21100HSR3 Features

* Characterized with Series Equivalent Large - Signal Impedance Parameters
* Internally Matched for Ease of Use
* Qualified Up to a Maximum of 32 VDD Operation
* Integrated ESD Protection
* Designed for Lower Memory Effects and Wide Instantaneous Bandwidth App

MRF6S21100HSR3 Applications

* with frequencies from 2110 to 2170 MHz. Suitable for TDMA, CDMA and multicarrier amplifier applications. To be us ed in Clas s AB for PCN - PCS/c ellular radio, WLL and TD - SCDMA applications.
* Typical 2 - carrier W - CDMA Performance for VDD = 28 Volts, IDQ = 950 mA, Pout = 23 Watts Avg. ,

📥 Download Datasheet

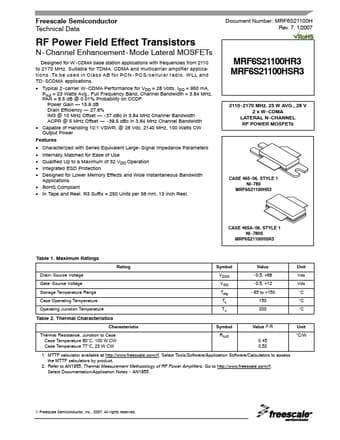

MRF6S21100HSR3 Datasheet Preview — This datasheet PDF includes multiple part numbers: MRF6S21100HSR3, MRF6S21100HR3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: MRF6S21100HSR3, MRF6S21100HR3
Manufacturer: Freescale Semiconductor
File Size: 696.21 KB
Datasheet: MRF6S21100HR3_FreescaleSemiconductor.pdf
Description: RF Power Field Effect Transistors
Note: This datasheet PDF includes multiple part numbers: MRF6S21100HSR3, MRF6S21100HR3.
Please refer to the document for exact specifications by model.
