MRF8P20160HSR3 RF Power Field Effect Transistor

10 pF Chip Capacitors 0.3 pF Chip Capacitor 1.1 pF Chip Capacitors 12 pF Chip Capacitors 10 μF, 50 V Chip Capacitors 22 μF, 35 V Tantalum Capacitors 2.0 pF Chip Capacitors 2.2 pF Chip Capacitors 220 μF, 50 V Electrolytic Capacitors 0.8 pF Chip Capacitor 50 Ω, 4 W Chip Resistor 8.25 Ω, 1/4 W Chip Res.

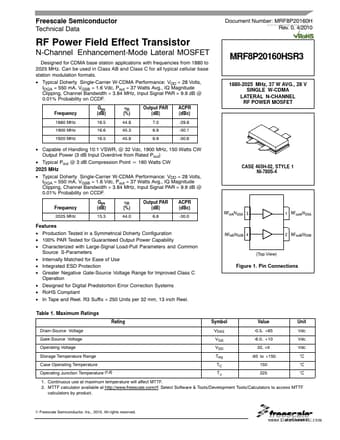

Freescale Semiconductor Technical Data Document Number: MRF8P20160H www.DataSheet4U.com Rev. 0, 4/2010 RF Power Field Effect Transistor N-Channel Enhancement-Mode Lateral MOSFET Designed for CDMA base station applications with frequencies from 1880 to 2025 MHz. Can be used in Class AB and Class C for all typical cellular base station modulation formats. Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQA = 550 mA, VGSB = 1.6 Vdc, Pout = 37 Watts Avg., IQ Magnitude.

MRF8P20160HSR3 Features

* Production Tested in a Symmetrical Doherty Configuration

* 100% PAR Tested for Guaranteed Output Power Capability

* Characterized with Large-Signal Load-Pull Parameters and Common Source S-Parameters

* Internally Matched for Ease of Use

* Integrated ESD Prot

MRF8P20160HSR3 Datasheet (301.15 KB)

MRF8P20160HSR3 Datasheet Preview — Preview of MRF8P20160HSR3 PDF

Datasheet Details

Part number:

MRF8P20160HSR3

Manufacturer:

Freescale Semiconductor

File Size:

301.15 KB

Description:

Rf power field effect transistor.
