MRF8P9300HSR6, MRF8P9300HR6 - RF Power Field Effect Transistors

Freescale Semiconductor

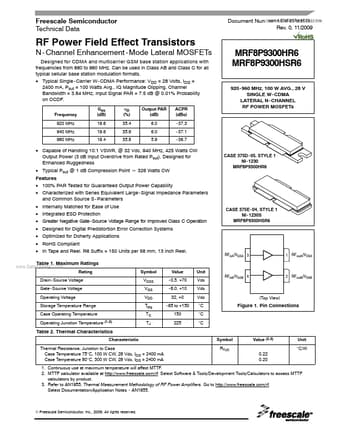

MRF8P9300HSR6 Datasheet Preview — This datasheet PDF includes multiple part numbers: MRF8P9300HSR6, MRF8P9300HR6. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MRF8P9300HSR6, MRF8P9300HR6
Manufacturer	Freescale Semiconductor
File Size	411.05 KB
Description	RF Power Field Effect Transistors
Datasheet	MRF8P9300HR6_FreescaleSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MRF8P9300HSR6, MRF8P9300HR6. Please refer to the document for exact specifications by model.

MRF8P9300HSR6 Product details

Description

Short RF Bead 0.2 pF Chip Capacitor 39 pF Chip Capacitors 1.1 pF Chip Capacitors 2.7 pF Chip Capacitors 5.1 pF Chip Capacitors 3.0 pF Chip Capacitors 10 pF Chip Capacitors 2.2 μF, 50 V Chip Capacitors 47 μF, 50 V Electrolytic Capacitors 1.0 pF Chip Capacitors 0.5 pF Chip Capacitors 0.8 pF Chip Capacitors 4.7 pF Chip Capacitors 4.3 pF Chip Capacitors 11 pF Chip Capacitors 20 pF Chip Capacitors 30 pF Chip Capacitors 10 μF, 50 V Chip Capacitors 470 μF, 63 V Electrolytic Capacitors 0.030″, εr = 3.50

Features

100% PAR Tested for Guaranteed Output Power Capability.
Characterized with Series Equivalent Large - Signal Impedance Parameters and Common Source S - Parameters.
Internally Matched for Ease of Use.
Integrated ESD Protection.
Greater Negative Gate-Source Voltage Range for Improved Class C Operation.
Designed for Digital Predistortion Error Correction Systems.
Optimized for Doherty.
