HPD600R700DN

Silicon N-Channel Power MOSFET

HPD600R700DN Features

* l Superior switching performance l Low on resistance(Rdson≤0.7Ω) l Low gate charge (Typical Data:26nC) l Low reverse transfer capacitances(Typical:23.8pF) l 100% Single pulse avalanche energy test Applications： Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherwise specifie

HPD600R700DN General Description

HPD600R700DN, the silicon N-channel Enhanced VDMOSFETs, is obtained by the double-shield Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and hi.

HPD600R700DN Datasheet (407.79 KB)

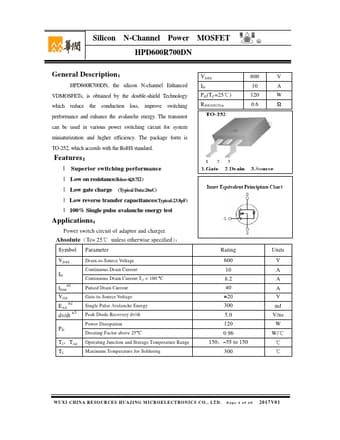

Preview of HPD600R700DN PDF

Datasheet Details

Part number:

HPD600R700DN

Manufacturer:

HUAJING MICROELECTRONICS

File Size:

407.79 KB

Description:

Silicon n-channel power mosfet.
