HPD650R1K9DN

Silicon N-Channel Power MOSFET

HUAJING MICROELECTRONICS

HPD650R1K9DN Features

* l Superior switching performance l Low on resistance(Rdson≤1.9Ω) l Low gate charge (Typical Data:13.4nC) l Low reverse transfer capacitances(Typical:5.6pF) l 100% Single pulse avalanche energy test Applications： Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherwise specifi

HPD650R1K9DN General Description

HPD650R1K9DN, the silicon N-channel Enhanced VDMOSFETs, is obtained by the double-shield Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and hi.

HPD650R1K9DN Datasheet (417.72 KB)

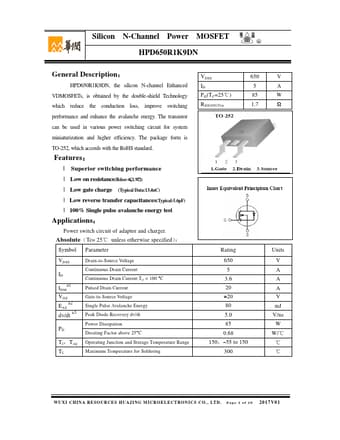

HPD650R1K9DN Datasheet Preview — Preview of HPD650R1K9DN PDF

Datasheet Details

Part number:

HPD650R1K9DN

Manufacturer:

HUAJING MICROELECTRONICS

File Size:

417.72 KB

Description:

Silicon n-channel power mosfet.
