HYG025N06LS1B - N-Channel Enhancement Mode MOSFET

Description

TO-220FB-3L TO-263-2L Applications High Frequency Point-of-Load Synchronous Buck Converter Power Tool Application Ordering and Marking Information Single N-Channel MOSFET P G025N06 XYMXXXXXX B G025N06 XYMXXXXXX Package Code P: TO-220FB-3L B: TO-263-2L Date Code XYMXXXXXX Note: H

📥 Download Datasheet

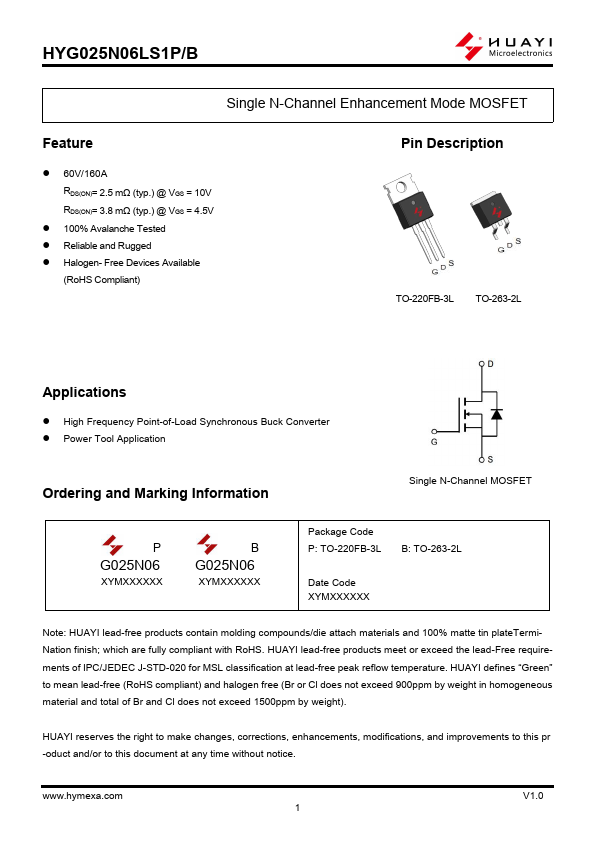

Datasheet preview – HYG025N06LS1B

Datasheet Details

Part number HYG025N06LS1B
Manufacturer HUAYI
File Size 1.45 MB
Description N-Channel Enhancement Mode MOSFET
Datasheet download datasheet HYG025N06LS1B Datasheet

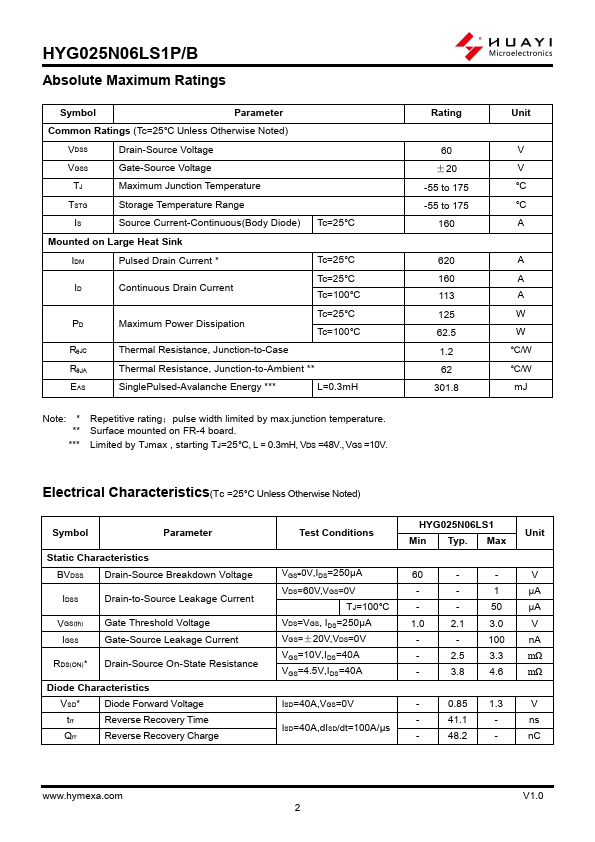

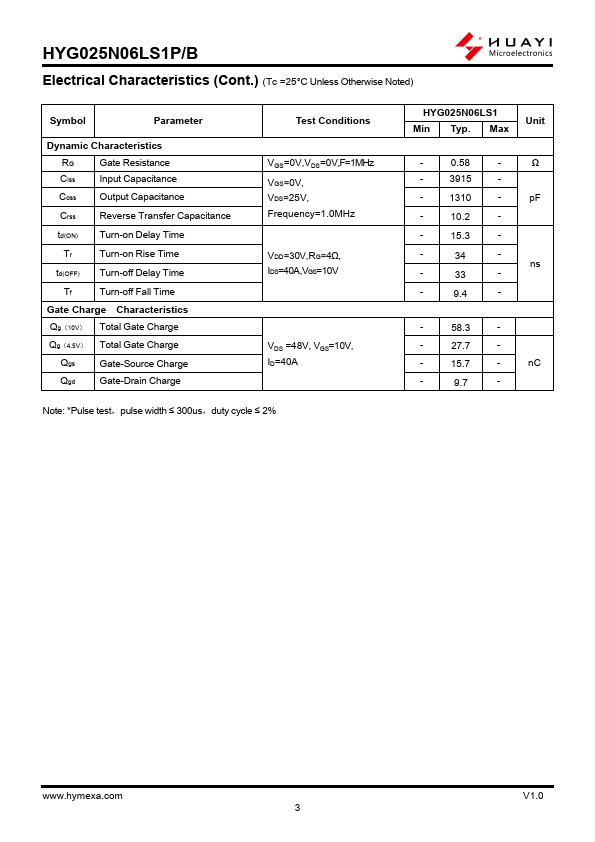

Additional preview pages of the HYG025N06LS1B datasheet.

📁 Similar Datasheet

Other Datasheets by HUAYI

Full PDF Text Transcription

Click to expand full text
HYG025N06LS1P/B Single N-Channel Enhancement Mode MOSFET Feature  60V/160A RDS(ON)= 2.5 mΩ (typ.) @ VGS = 10V RDS(ON)= 3.8 mΩ (typ.) @ VGS = 4.5V  100% Avalanche Tested  Reliable and Rugged  Halogen- Free Devices Available (RoHS Compliant) Pin Description TO-220FB-3L TO-263-2L Applications  High Frequency Point-of-Load Synchronous Buck Converter  Power Tool Application Ordering and Marking Information Single N-Channel MOSFET P G025N06 XYMXXXXXX B G025N06 XYMXXXXXX Package Code P: TO-220FB-3L B: TO-263-2L Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation finish; which are fully compliant with RoHS.
