HYG025N06LS1C2 - N-Channel Enhancement Mode MOSFET

Description

DDDD DDDD SSSG GSSS Pin1 PDFN8L（5x6） Applications High Frequency Point-of-Load Synchronous Buck Converter Power Tool Application Networking DC-DC Power System Ordering and Marking Information Single N-Channel MOSFET C2 G025N06 XYMXXXXXX Package Code C2: PDFN8L（5x6） Date C

📥 Download Datasheet

Datasheet preview – HYG025N06LS1C2

Datasheet Details

Part number HYG025N06LS1C2
Manufacturer HUAYI
File Size 1.46 MB
Description N-Channel Enhancement Mode MOSFET
Datasheet download datasheet HYG025N06LS1C2 Datasheet

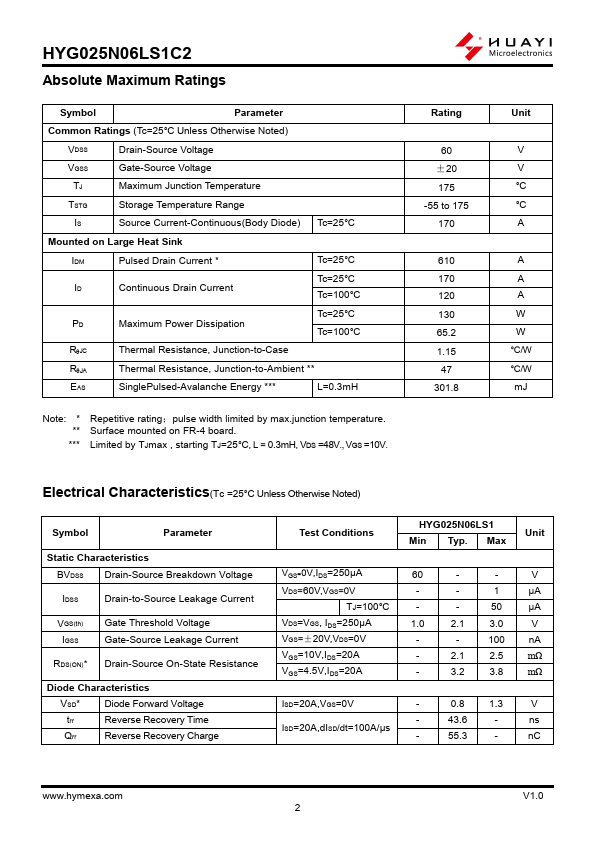

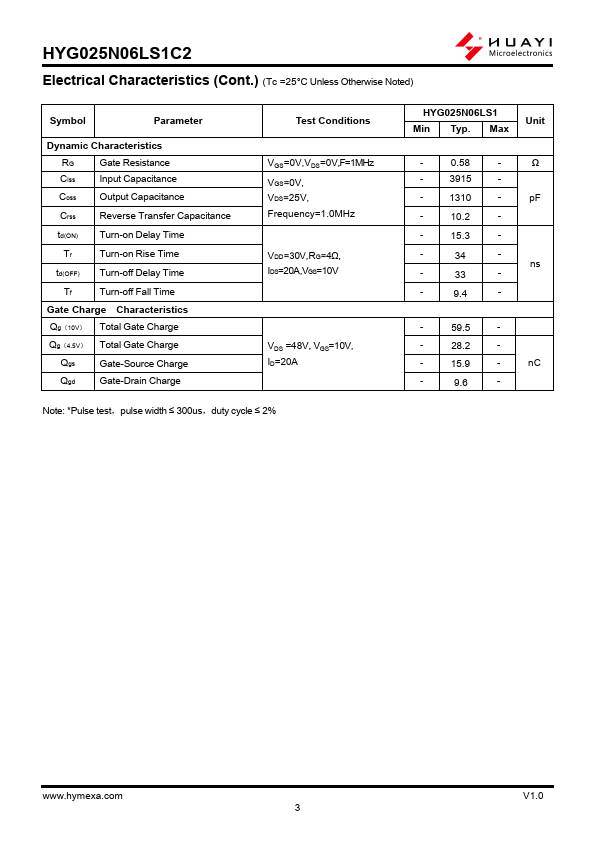

Additional preview pages of the HYG025N06LS1C2 datasheet.

📁 Similar Datasheet

Other Datasheets by HUAYI

Full PDF Text Transcription

Click to expand full text

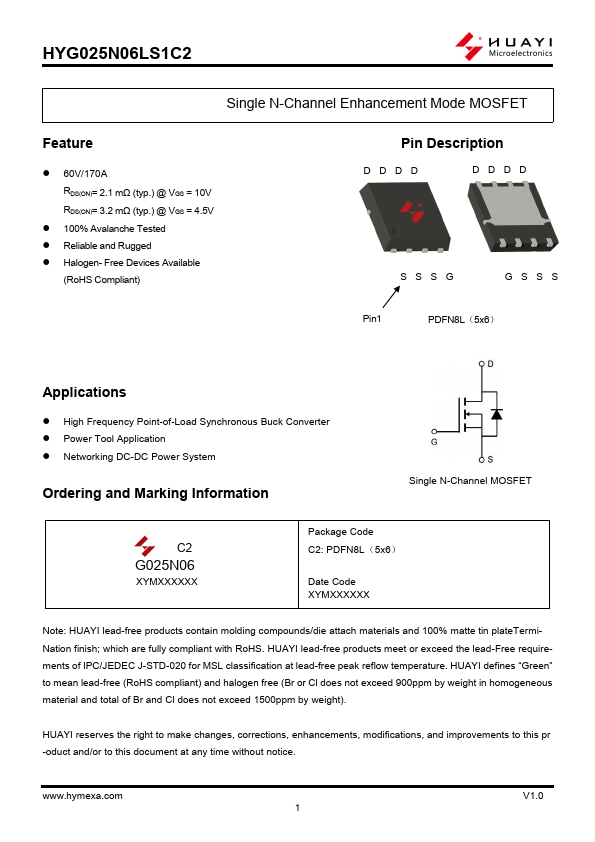

HYG025N06LS1C2 Single N-Channel Enhancement Mode MOSFET Feature  60V/170A RDS(ON)= 2.1 mΩ (typ.) @ VGS = 10V RDS(ON)= 3.2 mΩ (typ.) @ VGS = 4.5V  100% Avalanche Tested  Reliable and Rugged  Halogen- Free Devices Available (RoHS Compliant) Pin Description DDDD DDDD SSSG GSSS Pin1 PDFN8L（5x6） Applications  High Frequency Point-of-Load Synchronous Buck Converter  Power Tool Application  Networking DC-DC Power System Ordering and Marking Information Single N-Channel MOSFET C2 G025N06 XYMXXXXXX Package Code C2: PDFN8L（5x6） Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation finish; which are fully compliant with RoHS.
