HSC2240, HSC2240_Hi - NPN EPITAXIAL PLANAR TRANSISTOR

HSC2240 Description

HI-SINCERITY MICROELECTRONICS CORP.HSC2240 NPN EPITAXIAL PLANAR TRANSISTOR Spec.No.: HE6529 Issued Date : 1992.12.16 Revised Date : 2005.02.15 Pag.
Low noise audio amplifier applications Absolute Maximum Ratings TO-92. Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Te.

HSC2240 Applications

* Absolute Maximum Ratings TO-92
* Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature 150 °C Maximum
* Maximum Power Dissipation Total Power Dissipation (TA=25°C) 625 mW
* Maximum Voltages and Currents (TA=25°C) VCBO Collector to Base Voltage 150

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSC2240, HSC2240_Hi. Please refer to the document for exact specifications by model.

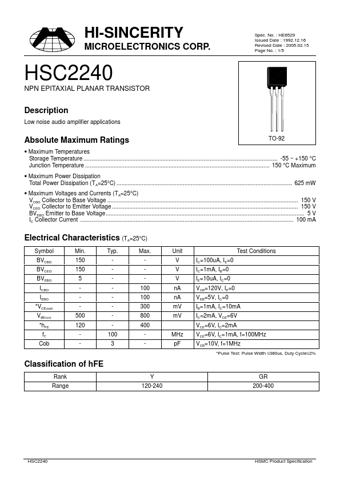

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSC2240, HSC2240_Hi
Manufacturer
Hi-Sincerity Mocroelectronics
File Size
51.85 KB
Datasheet
HSC2240_Hi-SincerityMocroelectronics.pdf
Description
NPN EPITAXIAL PLANAR TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: HSC2240, HSC2240_Hi.
Please refer to the document for exact specifications by model.
