2SB824 - PNP Transistor

Product Overview

📥 Download Datasheet

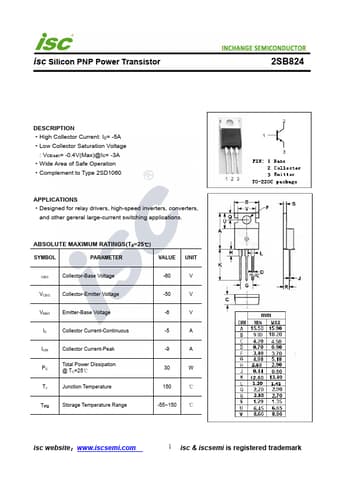

Datasheet preview – 2SB824

Datasheet Details

Part number 2SB824
Manufacturer INCHANGE
File Size 214.16 KB
Description PNP Transistor
Datasheet download datasheet 2SB824 Datasheet
Additional preview pages of the 2SB824 datasheet.

Product details

Description

High Collector Current: IC= -5A Low Collector Saturation Voltage : VCE(sat)= -0.4V(Max)@IC= -3A Wide Area of Safe Operation Complement to Type 2SD1060 APPLICATIONS Designed for relay drivers, high-speed inverters, converters, and other gereral large-current switching applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT CBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -6 V IC Collector
