IXTH250N075T Datasheet - INCHANGE

IXTH250N075T, N-Channel MOSFET

isc N-Channel MOSFET Transistor IXTH250N075T *.

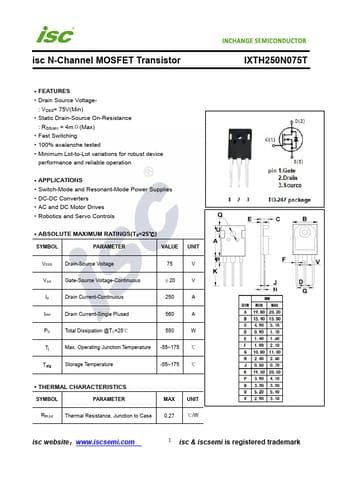

datasheet Preview Page 1 from Datasheet4u.com

IXTH250N075T-INCHANGE.pdf

IXTH250N075T Datasheet Preview — Preview of IXTH250N075T PDF

Datasheet Details

Part number:

IXTH250N075T

Manufacturer:

INCHANGE

File Size:

331.94 KB

Description:

N-Channel MOSFET

Features

* Drain Source Voltage- : VDSS= 75V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 4mΩ(Max)
* Fast Switching
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* Switch-Mode and Resonant-Mode Power Supplies
* DC-DC Converters
* AC and DC Motor Drives
* Robotics and Servo Controls
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous
