STP12NM50 - N-Channel MOSFET

INCHANGE

📥 Download Datasheet

STP12NM50 Datasheet Preview — Preview of STP12NM50 PDF

Datasheet Details

Part number	STP12NM50
Manufacturer	INCHANGE
File Size	271.24 KB
Description	N-Channel MOSFET
Datasheet	STP12NM50-INCHANGE.pdf

STP12NM50 Product details

Description

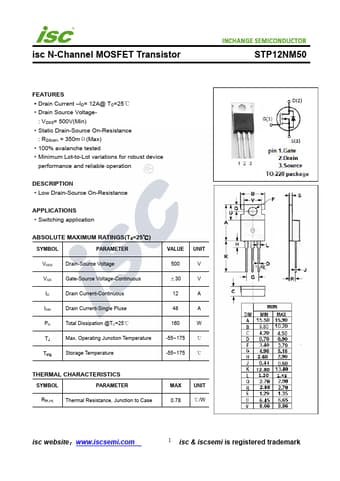

Low Drain-Source On-Resistance APPLICATIONS Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 500 V ±30 V 12 A 48 A 160 W -55~175 ℃ -55~175 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance

Features

Drain Current.
ID= 12A@ TC=25℃.
Drain Source Voltage- : VDSS= 500V(Min).
Static Drain-Source On-Resistance : RDS(on) = 350mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
