IXFC96N15P PolarHT HiPerFET Power MOSFET ISOPLUS220

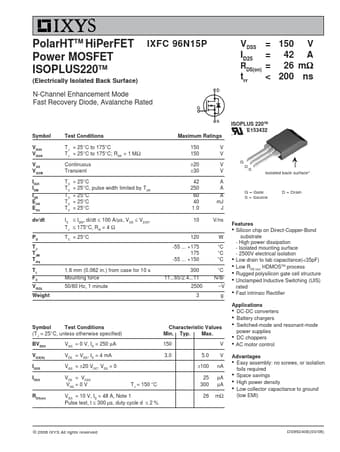

www.DataSheet4U.com PolarHTTM HiPerFET Power MOSFET ISOPLUS220TM (Electrically Isolated Back Surface) IXFC 96N15P VDSS = 150 V ID25 = 42 A RDS(on) = 26 mΩ < 200 ns trr N-Channel Enhancement Mode Fast Recovery Diode, Avalanche Rated ISOPLUS 220TM E153432 Symbol VDSS VDGR VGS VGSM ID25 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL FC VISOL Weight 1.6 mm (0.062 in.) from case for 10 s Mounting force 50/60 Hz, 1 minute Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C; RGS = 1 MΩ Continuous Transi.

IXFC96N15P Features

* z Silicon chip on Direct-Copper-Bond substrate - High power dissipation - Isolated mounting surface - 2500V electrical isolation z Low drain to tab capacitance(
