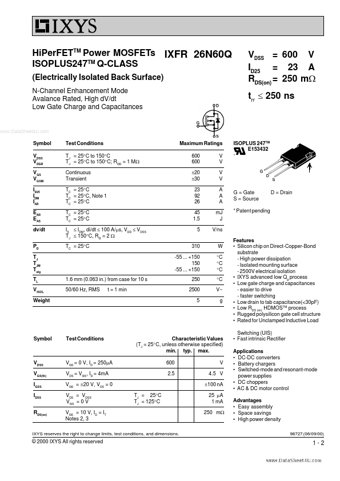

IXFR26N60Q Datasheet, Mosfets, IXYS Corporation

IXFR26N60Q Features

• Mosfets
• Silicon chip on Direct-Copper-Bond substrate - High power dissipation - Isolated mounting surface - 2500V electrical isolation
• IXYS advanced low Qg process

PDF File Details

Part number:

IXFR26N60Q

Manufacturer:

IXYS Corporation

File Size:

67.30kb

Download:

📄 Datasheet

Description:

Hiperfettm power mosfets.

IXFR26N60Q Application

• Applications
• DC-DC converters
• Battery chargers
• Switched-mode and resonant-mode power supplies
• DC choppers
