IXFR200N10P - PolarTM HiPerFET Power MOSFET

Datasheet Summary

Features

  • z Silicon chip on Direct-Copper-Bond substrate - High power dissipation - Isolated mounting surface - 2500V electrical isolation z Low drain to tab capacitance(.

📥 Download Datasheet

Datasheet preview – IXFR200N10P

Datasheet Details

Part number IXFR200N10P
Manufacturer IXYS Corporation
File Size 593.20 KB
Description PolarTM HiPerFET Power MOSFET
Datasheet download datasheet IXFR200N10P Datasheet
Additional preview pages of the IXFR200N10P datasheet.

📁 Similar Datasheet

Other Datasheets by IXYS Corporation

Full PDF Text Transcription

Click to expand full text

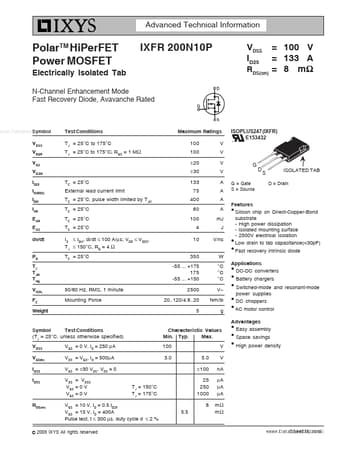

Advanced Technical Information PolarTM HiPerFET Power MOSFET Electrically Isolated Tab IXFR 200N10P VDSS ID25 RDS(on) = 100 V = 133 A = 8 mΩ N-Channel Enhancement Mode Fast Recovery Diode, Avavanche Rated www.DataSheet4U.com Symbol Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C; RGS = 1 MΩ Maximum Ratings 100 100 ± 20 ± 30 V V V V A A A A mJ J V/ns W °C °C °C V~ Nm/lb g VDSS VDGR VGS VGSM ID25 ID(RMS) IDM IAR EAR EAS dv/dt PD TJ TJM Tstg VISOL FC Weight ISOPLUS247 (IXFR) E153432 G D S ISOLATED TAB D = Drain TC = 25°C External lead current limit TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/µs, VDD ≤ VDSS, TJ ≤ 150°C, RG = 4 Ω TC = 25°C 133 75 400 60 100 4 10 350 -55 ... +175 175 -55 ...
