IXTT100N25P N-Channel MOSFET

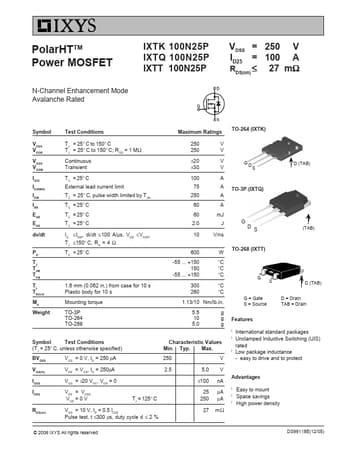

PolarHTTM Power MOSFET IXTK 100N25P IXTQ 100N25P IXTT 100N25P N-Channel Enhancement Mode Avalanche Rated V= DSS ID25 = ≤ RDS(on) 250 V 100 A 27 mΩ Symbol Test Conditions Maximum Ratings TO-264 (IXTK) V DSS VDGR VGSS VGSM ID25 ID(RMS) IDM IAR E AR EAS dv/dt PD TJ T JM Tstg TL TSOLD M d Weight T J = 25° C to 150° C TJ = 25° C to 150° C; RGS = 1 MΩ Continuous Transient TC = 25° C External lead current limit TC = 25° C, pulse width limited by TJM TC = 25° C T C = 25° C TC = 25° C .

IXTT100N25P Features

* l International standard packages l Unclamped Inductive Switching (UIS) rated l Low package inductance - easy to drive and to protect Advantages l Easy to mount l Space savings l High power density © 2006 IXYS All rights reserved DS99118E(12/05) Symbol gfs C iss C oss C rss td(on) tr td(off) tf

IXTQ100N25P_IXYSCorporation.pdf

This datasheet PDF includes multiple part numbers: IXTT100N25P, IXTQ100N25P. Please refer to the document for exact specifications by model.
