IXTT12N150HV - N-Channel Power MOSFET

Product Overview

IXYS

📥 Download Datasheet

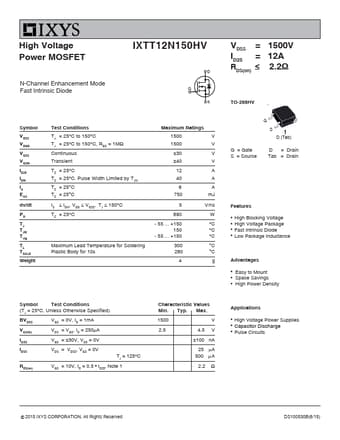

IXTT12N150HV N-Channel Power MOSFET by IXYS - Datasheet Preview — Datasheet preview – IXTT12N150HV

Datasheet Details

Part number	IXTT12N150HV
Manufacturer	IXYS
File Size	156.39 KB
Description	N-Channel Power MOSFET
Datasheet	IXTT12N150HV Datasheet
Additional preview pages of the IXTT12N150HV datasheet.

Product details

Features

High Blocking Voltage.
High Voltage Package.
Fast Intrinsic Diode.
Low Package Inductance Advantages.
Easy to Mount.
Space Savings.
High Power Density Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) BVDSS VGS = 0V, ID = 1mA VGS(th) VDS = VGS, ID = 250A IGSS VGS = 30V, VDS = 0V IDSS VDS = VDSS, VGS = 0V TJ = 125C RDS(on) VGS = 10V, ID = 0.5.
ID25, Note 1 Characteristic Values Min. Typ. Max. 1500 V 2.5 4.5 V .
