* International standard package miniBLOC UL recognized Aluminium nitride isolation - high power dissipation Isolation voltage 3000 V~ Very high current IGBT Low VCE(sat) for minimum on-state conduction losses MOS Gate turn-on - drive simplicity Low collector-to-case capacitance (< 50 pF) Low package
IXGN80N60A2D1 Datasheet (520.66 KB)
IXGN80N60A2D1
IXYS
520.66 KB
Igbt.

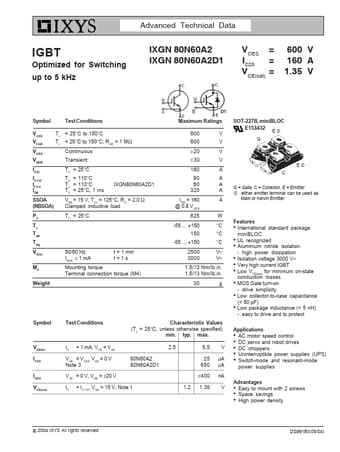

Advanced Technical Data
IGBT
Optimized for Switching
up to 5 kHz
IXGN 80N60A2 IXGN 80N60A2D1
VCES = IC25 = VCE(sat) =
600 V 160 A 1.35 V
Symbol
.
