* Optimized for Low Conduction
* Positive Thermal Coefficient of Vce(sat)
* International Standard Packages Advantages Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) BVCES IC = 250A, VGE = 0V VGE(th) IC = 250A, VCE = VGE ICES VCE = VCES, VGE = 0V TJ = 150C

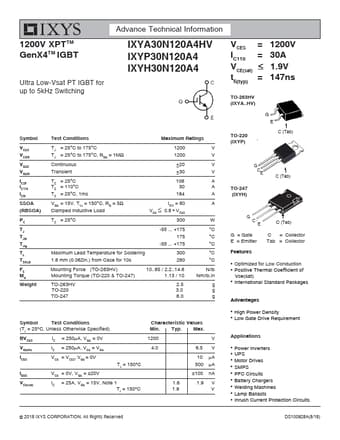

IXYP30N120A4 Datasheet (396.57 KB)
IXYP30N120A4
IXYS
396.57 KB
Ultra low-vsat pt igbt.
Advance Technical Information
1200V XPTTM GenX4TM IGBT
Ultra Low-Vsat PT IGBT for up to 5kHz Switching
IXYA30N120A4HV IXYP30N120A4 IXYH30N120A4
