* High Voltage Package
* Optimized for Low Switching Losses
* Square RBSOA
* Positive Thermal Coefficient of Vce(sat)
* Avalanche Rated
* International Standard Packages Advantages
* High Power Density
* Low Gate Drive Requirement Applications
* High Frequency Pow

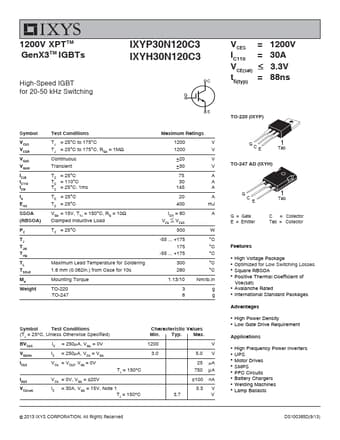

IXYP30N120C3 Datasheet (182.51 KB)
IXYP30N120C3
IXYS
182.51 KB
High-speed igbt.
1200V XPTTM GenX3TM IGBTs
High-Speed IGBT for 20-50 kHz Switching
IXYP30N120C3 IXYH30N120C3
VCES = 1200V IC110 = 30A VCE(sat) 3.3V tfi(typ) = 8.
