XPTTM 650V IGBT GenX3TM Extreme Light Punch Through IGBT for 20-60kHz Switching IXYP30N65C3 IXYH30N65C3 VCES = 650V IC110 = 30A V CE(sat)  2.7V tfi(typ) = 24ns TO-220 Symbol VCES VCGR VGES VGEM IC25 IC110 ICM IA EAS SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1ms TC = 25°C TC = 25°C VGE = 15V, TVJ = 150°C, RG = 10 Clamped Inductive Load VGE = 15V, VC

IXYP30N65C3 Features

* Optimized for 20-60kHz Switching

* Square RBSOA

* Avalanche Rated

* Short Circuit Capability

* International Standard Packages Advantages

* High Power Density

* Extremely Rugged

* Low Gate Drive Requirement Applications

* Power Inverters

* UPS

* Motor Dr

IXYP30N65C3-IXYS.pdf

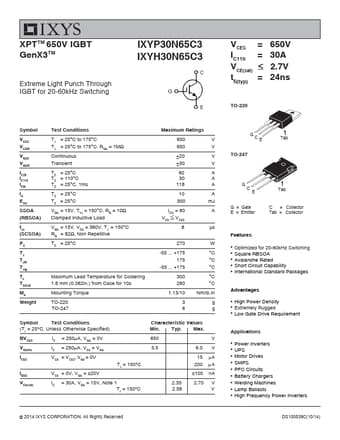

Preview of IXYP30N65C3 PDF
