2SD2642 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SD2642

Manufacturer:

Inchange Semiconductor

File Size:

214.95kb

Download:

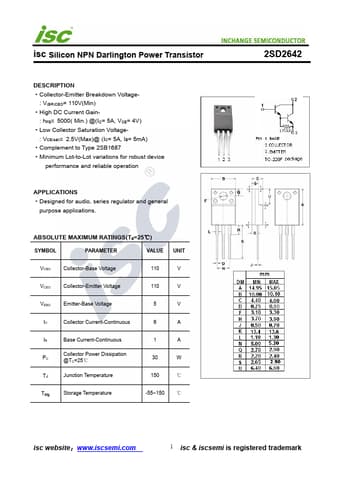

📄 Datasheet

Description:

Silicon npn darlington power transistor.

  • Collector-Emitter Breakdown Voltage- : V(BR)CEO= 110V(Min)
  • High DC Current Gain- : hFE= 5000( Min.) @(IC= 5A, VCE=

  • Datasheet Preview: 2SD2642 📥 Download PDF (214.95kb)
    Page 2 of 2SD2642

    2SD2642 Application

    • Applications
    • Designed for audio, series regulator and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER V

    TAGS

    2SD2642
    Silicon
    NPN
    Darlington
    Power
    Transistor
    Inchange Semiconductor
