3DD15C Datasheet - Inchange Semiconductor

3DD15C Silicon NPN Power Transistor

*Collector-Emitter Breakdown Voltage- : V(BR)CEO= 150V(Min.) *DC Current Gain- : hFE= 30~250(Min.)@IC= 2A *Collector-Emitter Saturation Voltage- : VCE(sat)= 1.5V(Max)@ IC= 2.5A APPLICATIONS *Designed for B&W TV horizontal output , regulated power supply and power amplifier applicati.

3DD15C-InchangeSemiconductor.pdf

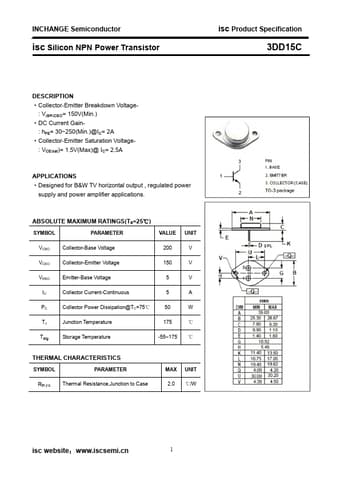

Preview of 3DD15C PDF
3DD15C Datasheet Preview Page 2

Datasheet Details

Part number:

3DD15C

Manufacturer:

Inchange Semiconductor

File Size:

184.61 KB

Description:

Silicon npn power transistor.
