ITCH18180B4 - High Power RF LDMOS FET

ITCH18180B4 Description

Innogration (Suzhou) Co., Ltd.Document Number: ITCH18180B4 Preliminary Datasheet V1.0 1785MHz-1880MHz, 180W, 28V High Power RF LDMOS FETs Descript.
The ITCH18180B4 is a 180-watt, internally matched LDMOS FET, designed for multicarrier WCDMA/PCS/DCS/LTE base station and ISM applications with freque.

ITCH18180B4 Features

* High Efficiency and Linear Gain Operations
* Integrated ESD Protection
* Internally Matched for Ease of Use
* Excellent thermal stability, low HCI drift
* Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation
* Pb-free, RoHS-compliant Table

ITCH18180B4 Applications

* with frequencies from 1785 to 1880 MHz. It Can be used in Class AB/B and Class C for all typical cellular base station modulation formats. ITCH18180B4
* Typical Performance of Doherty Demo (On Innogration fixture with device soldered): VDD =28 Volts, IDQMAIN =450 mA, VGPEAK=0.8V, Pulse CW, Pul

📥 Download Datasheet

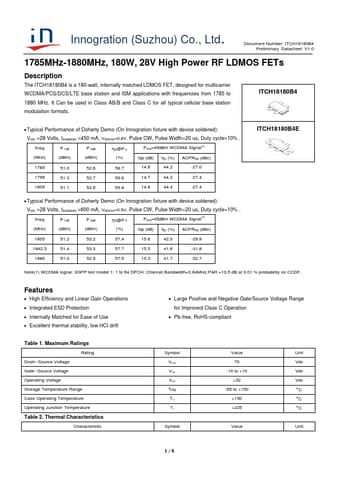

Preview of ITCH18180B4 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ITCH18180B4
Manufacturer
Innogration
File Size
954.89 KB
Datasheet
ITCH18180B4-Innogration.pdf
Description
High Power RF LDMOS FET
